Smart Knives for Graphtec plotters

Smart Knives
Smart Knives are supplied as combined blade and holder units - they replace your blade AND your blade holder.
They are pre-set and ready to fit straight into your plotter. See: About Smart Knives
Smart Knives are not "throw away" you buy them only once - see: Exchange
If you have not used Smart Knives before we can send you some to try - we promise you will like them.
If you are unsure about which type/s you need you are welcome to call us on 01928 739799 or email: info@edwardmathias.com
NOSECAP COLOUR IDENTIFIES TYPE

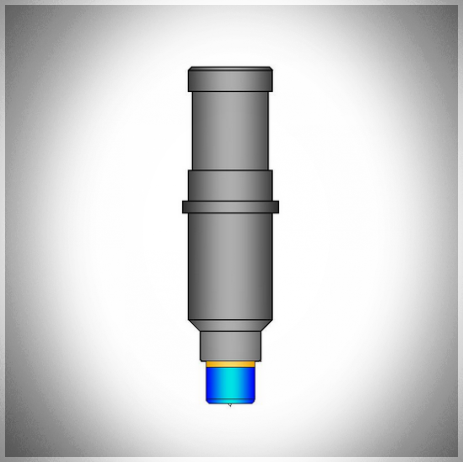

GSK09V
GSK09V
SMART KNIFE
Tool Setting CB09U
Offset 0

For cutting most common materials up to about 250-300 microns.

Unless you cut difficult or unusual materials this is probably the only type you will ever need.

Reserved for future use
GSK09F
GSK09F
SMART KNIFE
Tool Setting CB09
Offset 0

For cutting thicker materials than can be cut with the blue nosed GSK09V

Useful for flock, foils, glitter, some reflective materials,
some card, and some thick laminates.

Reserved for future use
GSK15F
GSK15F
SMART KNIFE
Tool Setting CB15
Offset 0

For cutting thicker materials than can be cut with the red nosed GSK09F

Can be useful for cutting some thicker laminates card etc.

Useful to stonemasons for cuting sandblast tape.

Reserved for future use

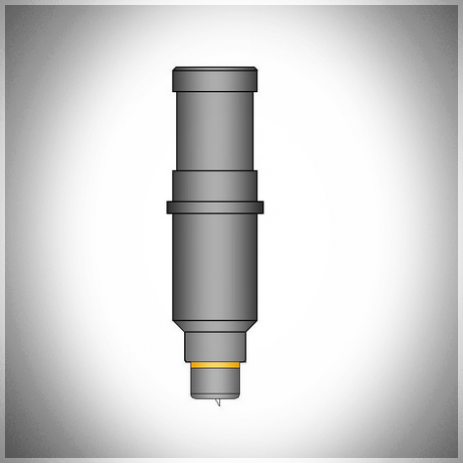

GSK15R
GSK15R
SMART KNIFE
Tool Setting CB15
Offset 0

Fine and fragile blade for cutting thick but not tough materials up to about 1.5mm.

Mainly used by stonemasons for cutting thick but soft sandblast tape.
(Like some Anchor Tapes)

Reserved for future use

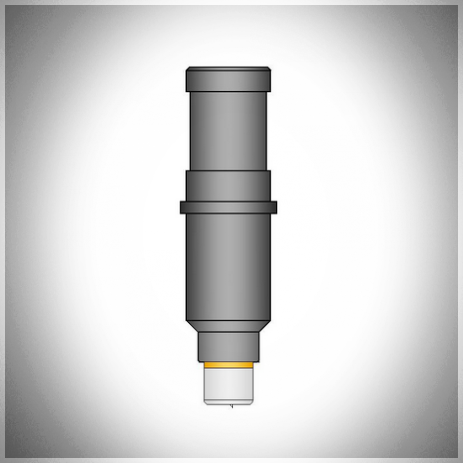

GSK09TF
GSK09TF
SMART KNIFE
Tool Setting CB09
Offset 0

For cutting very thin and sensitive materials.

Mainly used cutting window film, ruby film and some very thin vinyls.

Reserved for future use
Smart Knives shown fit ALL Graphtec Plotters
For Graphtec LITE & Graphtec F Mark - Call us

For "ordinary" Graphtec blades - see: Graphtec Blades

Always remember to set the correct TOOL setting for type in use.
